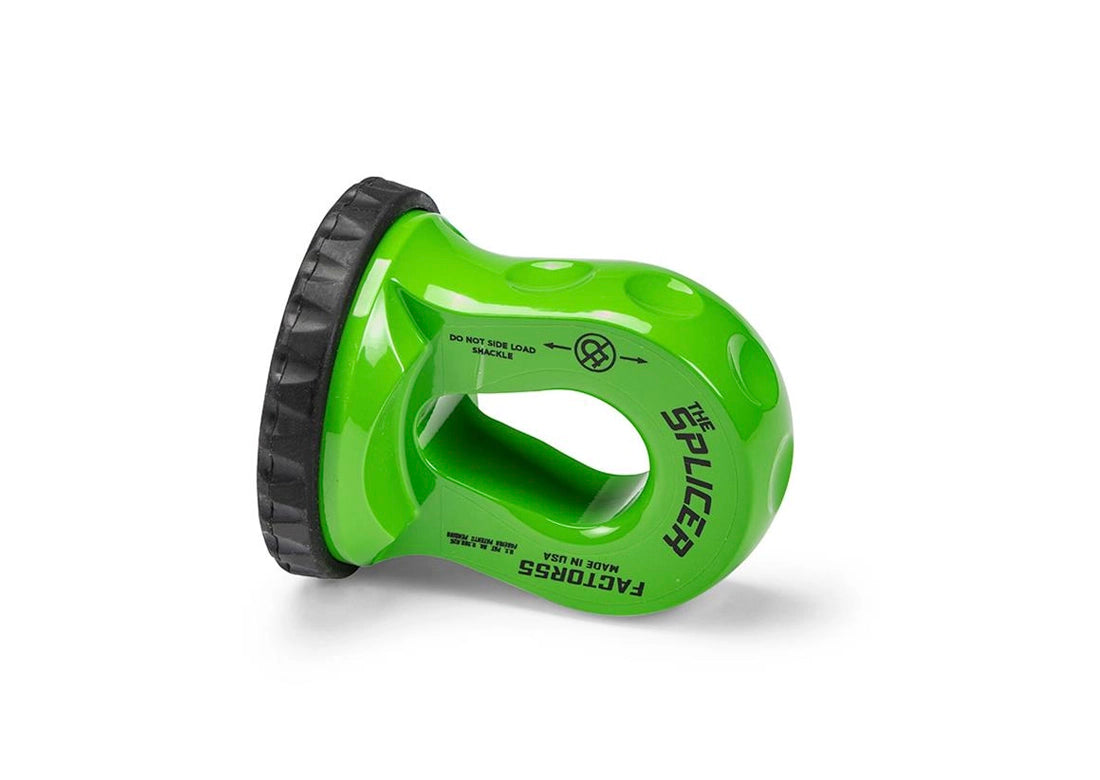

The Splicer

MPN: 00352-01
$83.00
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.go

MSRP: $103.75

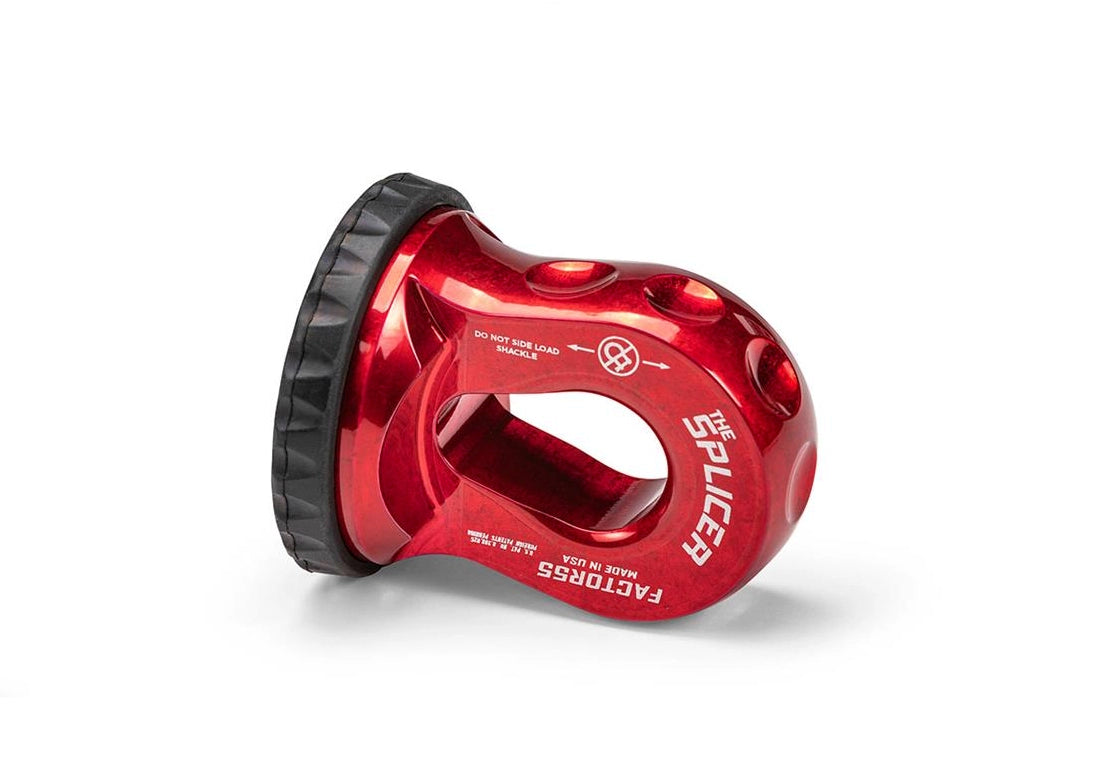

Color:  Red
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available

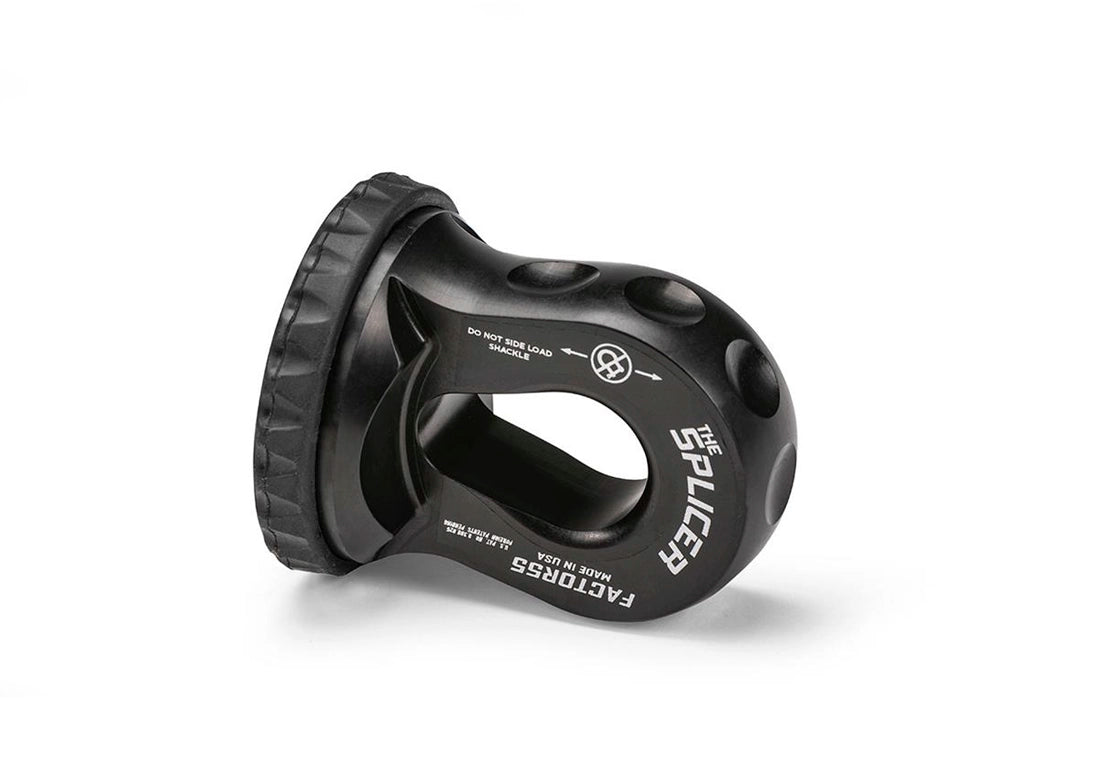

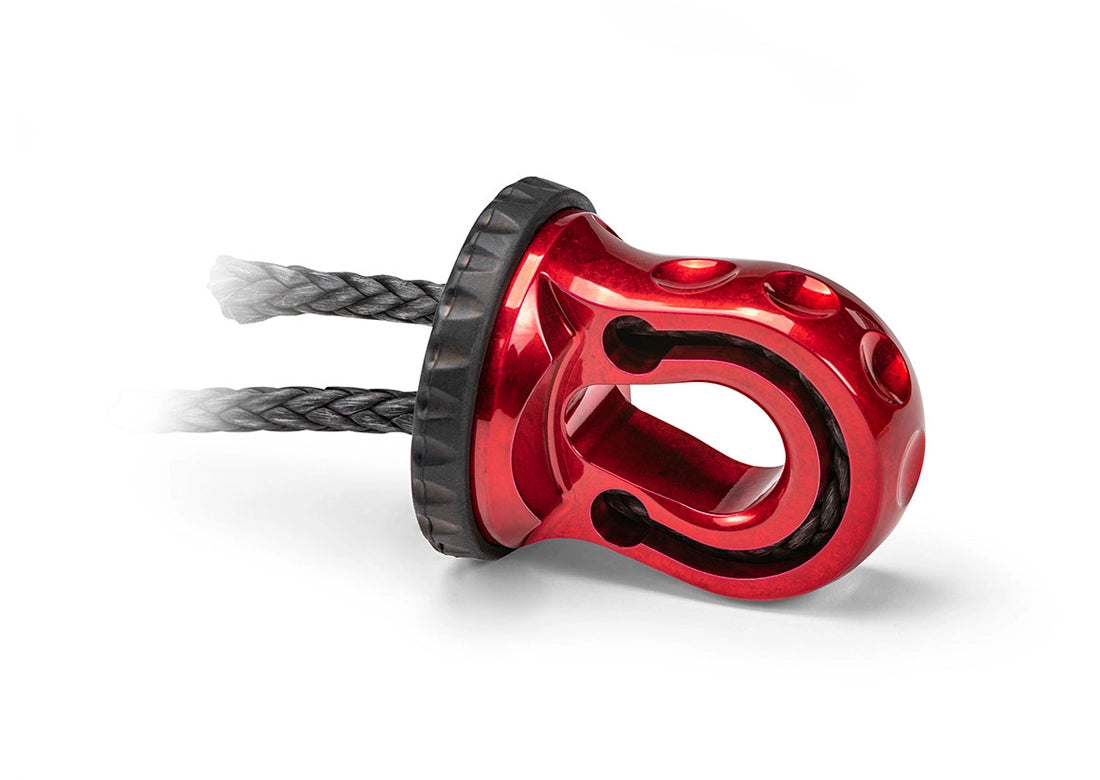

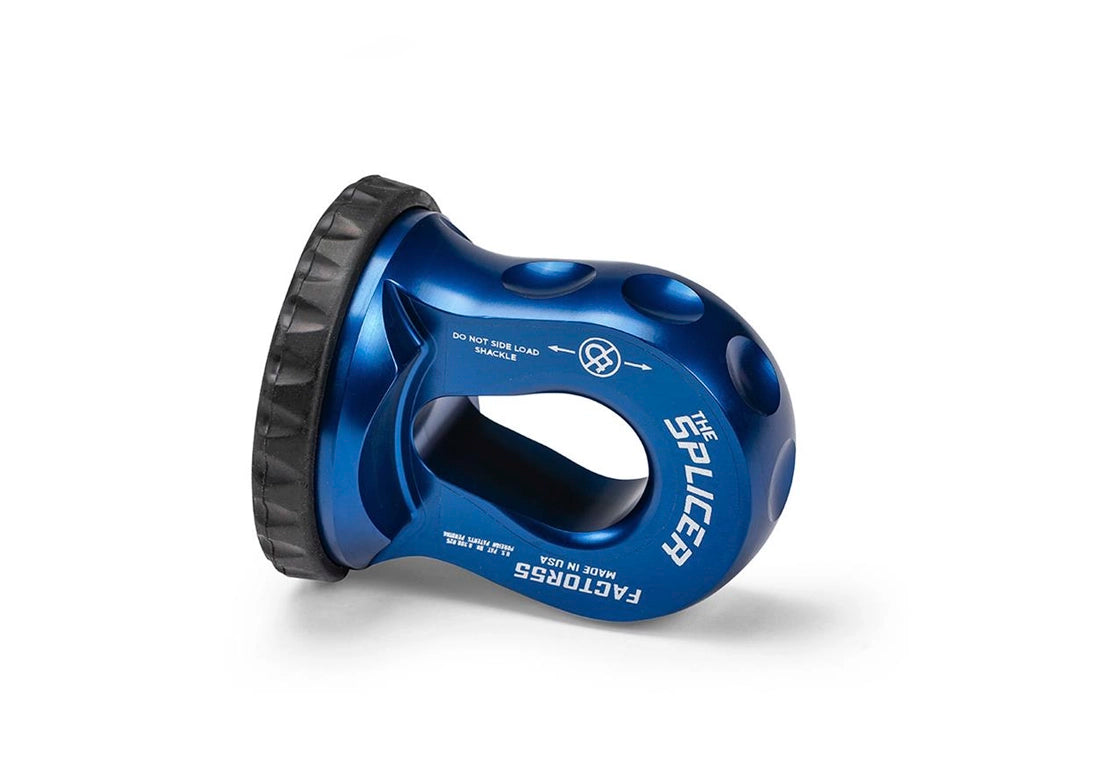

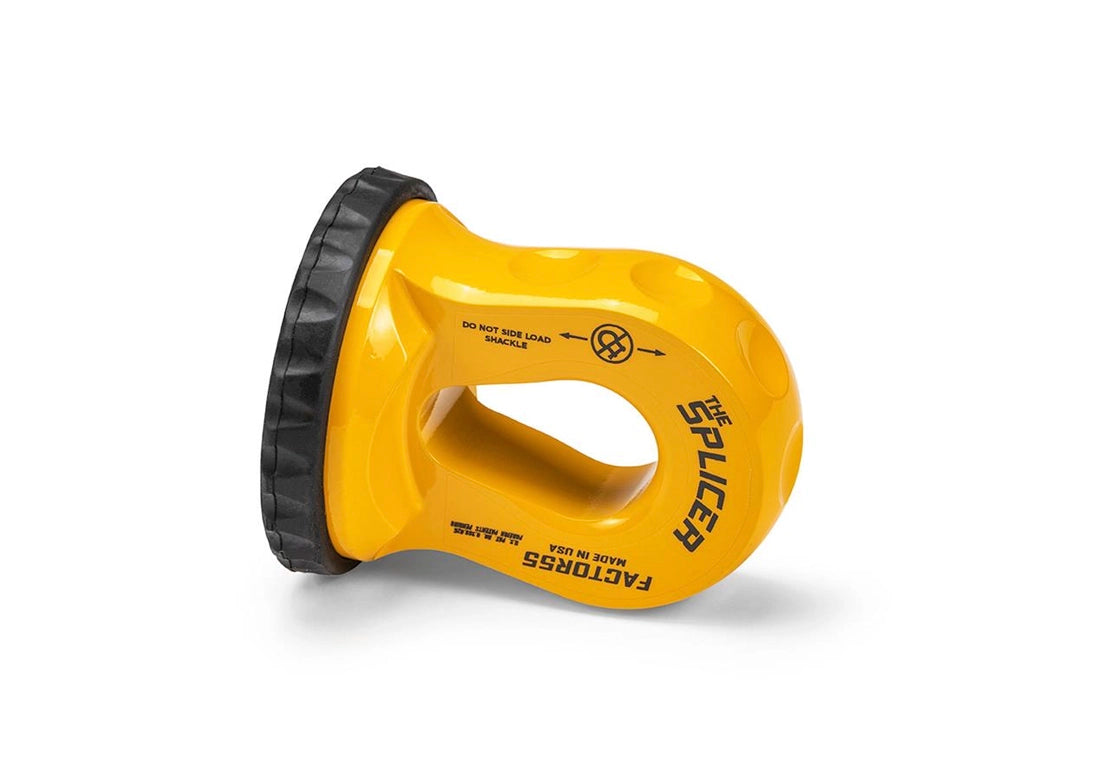

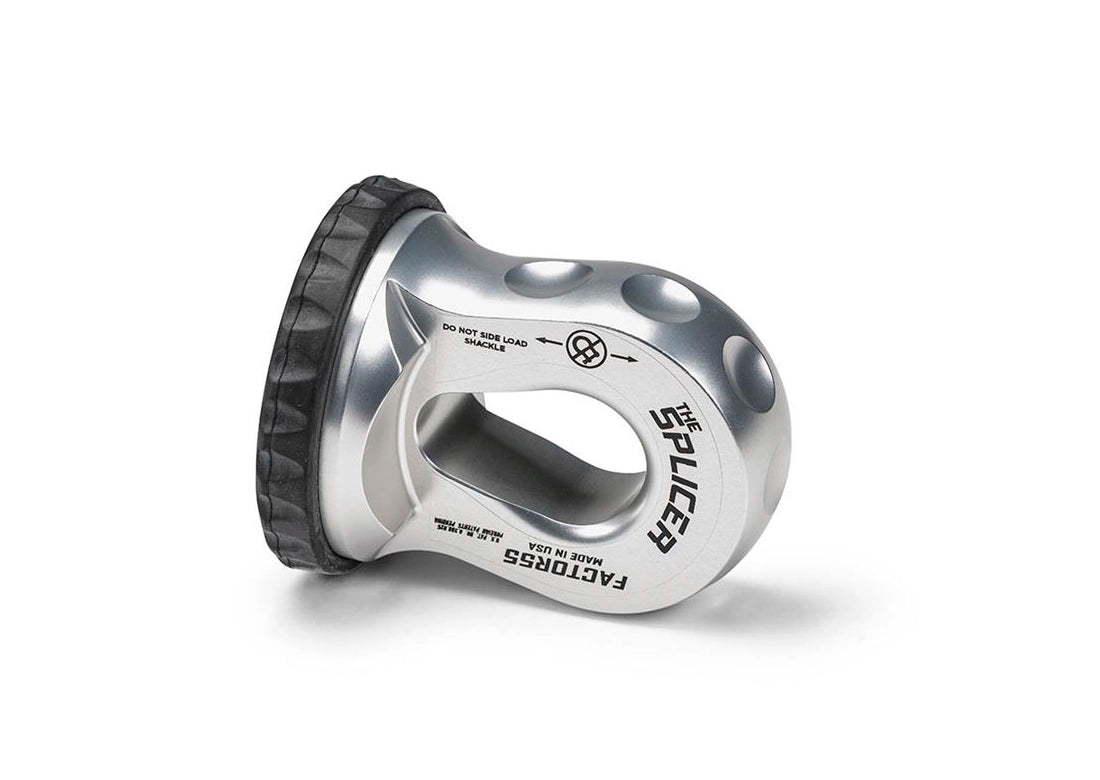

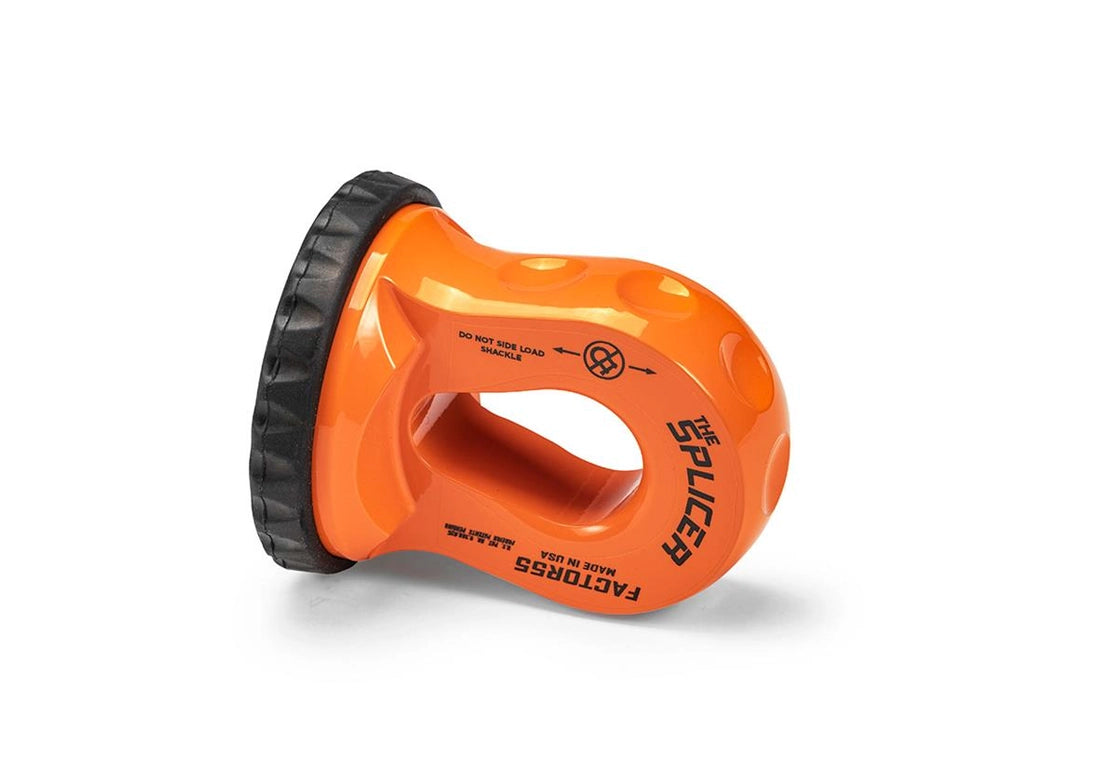

The world’s first splice on synthetic rope shackle mounting thimble with rope protection and integrated rubber pad.

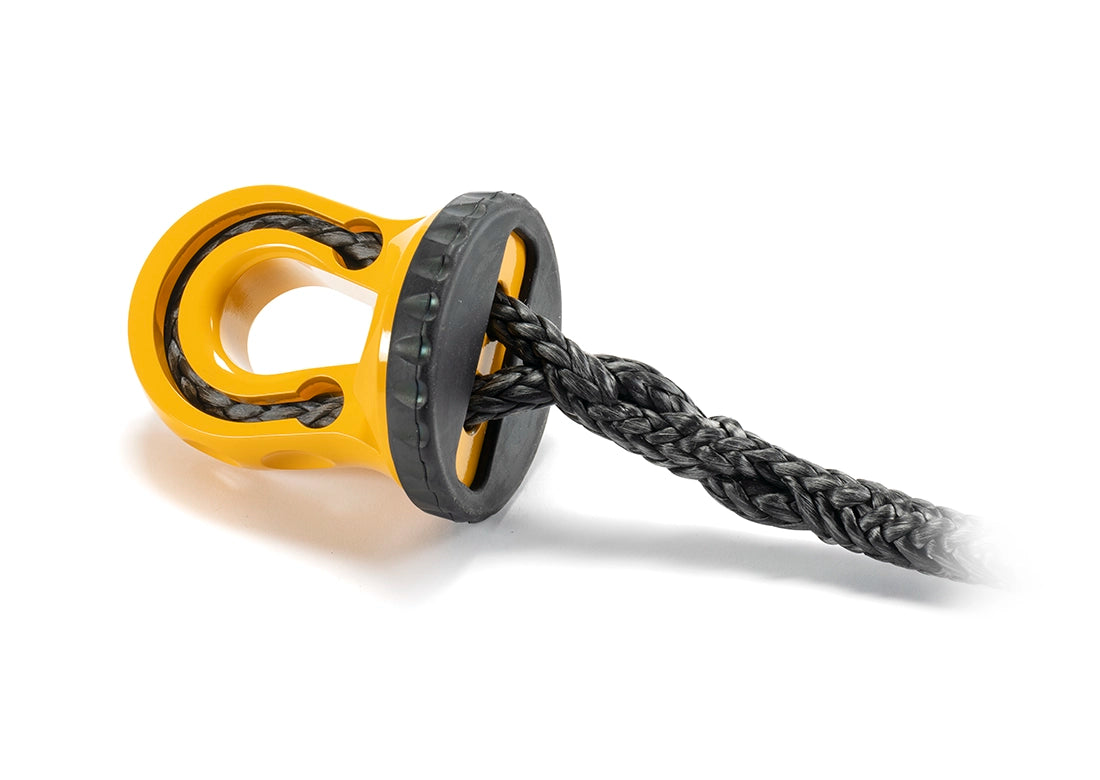

The unique machined rope passage provides a tough outer barrier to protect against rope impact and abrasion as well as UV exposure protection. Compatible with synthetic ropes up to 1/2″ in diameter.
NOTE: Unlike the Factor 55 ProLink and Flatlink shackle mount products, The Splicer requires synthetic rope splicing knowledge.  We recommend either the locking Brummel Splice or Long Bury Splice. There are many rope splicing video tutorials available on the web.

WLL: Due to the splice-on design, the Working Load Limit (WLL) is based on the rope diameter used. Each Splice-On Shackle Mount exceeds minimum bend radius requirements to provide full breaking strengths of synthetic winch lines used.

  • Replace conventional winch hooks with a safer more secure shackle/D-ring
  • The Industry’s first splice on winch rope thimble with impact & UV protection
  • Unique machined rope path provides complete rope protection
  • Safer recoveries through Closed System Winching
  • Lightweight – Precision CNC machined 6000 series Military Grade Aluminum
  • For synthetic winch rope only
  • Integrated EPDM rubber pad for fairlead protection
  • Connects to both the pin and bow end of common ¾” screw pin shackles
  • Connects to the pin ends of 7/8” and 1” screw pin shackles
  • For synthetic winch rope diameters up to ½”
  • Available in Military Spec Hard Anodizing (Mil-A-8625 F Type III) and powder coated finishes
  • Weight: 25oz
  • MADE IN THE USA
  • Patent Pending
  • Check out the Factor 55 Truck/SUV Catalog
Write your own review Close Review Form
  • Only registered users can write reviews
*
*
Bad
Excellent
Product Review
Finally a product that provides the safety of a thimble without all the extra, unnecessary parts. Don't be intimidated by the requirement to splice this thimble onto your winch line; all you really need is a bit of electrical tape and a marker (though a fid makes it even easier). I was working with 3/8" line and used the 3/8 Fid from Samson. To see how a splice is actually done, google the "long bury" or "brummel" splice. Trust me, you can do this.
| 11/19/2016 7:15 PM
Was this review helpful? Yes No (0/0)
Product Review
Factor 55 splicer works perfectly. Must be spliced professionally with a splicing FID specifically sized for your synthetic line. Tying the line in a knot is a No Go in this lane. Do NOT tie the line.
| 9/21/2016 8:12 PM
